HVAC Zoning Systems for Two-Story Homes

An HVAC zoning system splits one ducted heating and cooling system into separate areas, each with its own thermostat. Motorized dampers inside the duct branches open and close on command from a zone control panel at the air handler, so cool air can go to the upstairs bedrooms in the late afternoon while the downstairs rooms, already comfortable, get little or none. The same outdoor unit and air handler serve the whole house, but they no longer answer to one thermostat in the hallway.

For many South Bay homes, that is the difference between a second floor that matches the rest of the house and one that runs warm every afternoon. It is also a project where the equipment already in the home decides how well zoning performs, so the details below matter before anyone talks price.

How Zone Control Works Inside the Ductwork

A zone control system has three parts. Each zone gets its own thermostat or temperature sensor. Each zone's supply ducts get a motorized damper, a blade inside the duct that a small motor swings open or closed. The zone control panel, mounted near the air handler, reads every thermostat, opens the dampers for zones calling for cooling or heat, closes the rest, and tells the blower and outdoor unit to run.

On a typical afternoon, the upstairs gets warm while the downstairs is still comfortable. The upstairs thermostat kicks the system on, the downstairs dampers close, and all the cool air heads to the second floor. On hotter days when both floors need it, every damper stays open and the system runs like it always has. Inside the house, the only difference is an extra thermostat on the wall. Everything else happens up in the attic or down in the crawlspace.

Why the Current AC Matters for Zoning

It mostly comes down to airflow. A standard single-stage air conditioner moves one fixed volume of air. When only one small zone is calling, the panel closes most of the dampers, but the blower still pushes the same volume through far fewer ducts. Pressure in the ductwork climbs, vents get noisy, airflow across the indoor coil drops, and the coil can run cold enough to frost over.

Installers handle this in one of three ways. A bypass damper routes extra air from the supply side back to the return, which relieves the pressure but sends already-cooled air back across the coil, lowering efficiency and pushing coil temperature down further. A dump zone sends the extra air to a hallway or common area that can tolerate it. The cleanest approach is two-stage or variable-speed equipment, which slows the blower and compressor to match what a single zone needs. Several major manufacturers pair their variable-speed systems with communicating zone controls designed to adjust airflow automatically.

That is why the age of the current system matters. Zoning a newer variable-speed system is mostly dampers, wiring, and thermostats. Zoning an older single-stage system usually means a bypass or dump zone, and for some homes it makes more sense to add zoning when the equipment is replaced.

Homes Where Zoning Makes the Biggest Difference

Zoning helps two-story homes the most, especially older houses in Torrance and Redondo Beach where a second story or a bonus room over the garage was added years after the ductwork went in.

Rooms behind large west-facing windows, converted attics, and additions on their own wing all heat up on a different schedule than the rest of the house. Zoning also helps when areas are used at different times, such as upstairs bedrooms at night and a downstairs office during the day.

Near the water with coastal homes, the downstairs can stay cool through a marine-layer morning while the rooms under the roof are already warming by early afternoon. A single thermostat on the first floor reads the cool downstairs and shuts the system off, leaving the upper floor behind. Separate zones let each floor call for cooling on its own.

Zoning does not fix ducts that cannot carry enough air. If the upstairs runs are undersized, crushed, or leaking into the attic, closing the downstairs dampers only adds pressure to a system that still cannot deliver, so the condition of the ductwork has to be checked first. Small single-story homes with one open living area rarely see enough difference to justify the project.

Planning the Number of Zones

Two zones, upstairs and downstairs, cover most two-story homes. A third or fourth zone makes sense when an addition, a large primary suite, or a sun-heavy room behaves differently from the rest of its floor. Each zone needs enough duct capacity to accept a real share of the system's airflow on its own. Very small zones are what create the pressure problems described above and cause the system to start and stop in short bursts. The zone layout should come from a load calculation and an airflow measurement, not from the number of rooms.

What Drives HVAC Zoning System Cost

HVAC zoning cost comes down to a handful of factors: how many zones the home needs, how easily dampers can reach the duct branches, whether the existing equipment can run zoned without a bypass, which thermostats are used, and whether any duct repairs need to happen first. Ducts in an open attic are faster to work on than ducts in a tight crawlspace or inside finished ceilings. Adding zoning during a full system replacement is often the most cost-effective timing, since the ducts are already being accessed and the new equipment can be chosen with zoning in mind.

Zoning is also one of several ways to fix an uneven home, and the right choice depends on what is causing the problem.

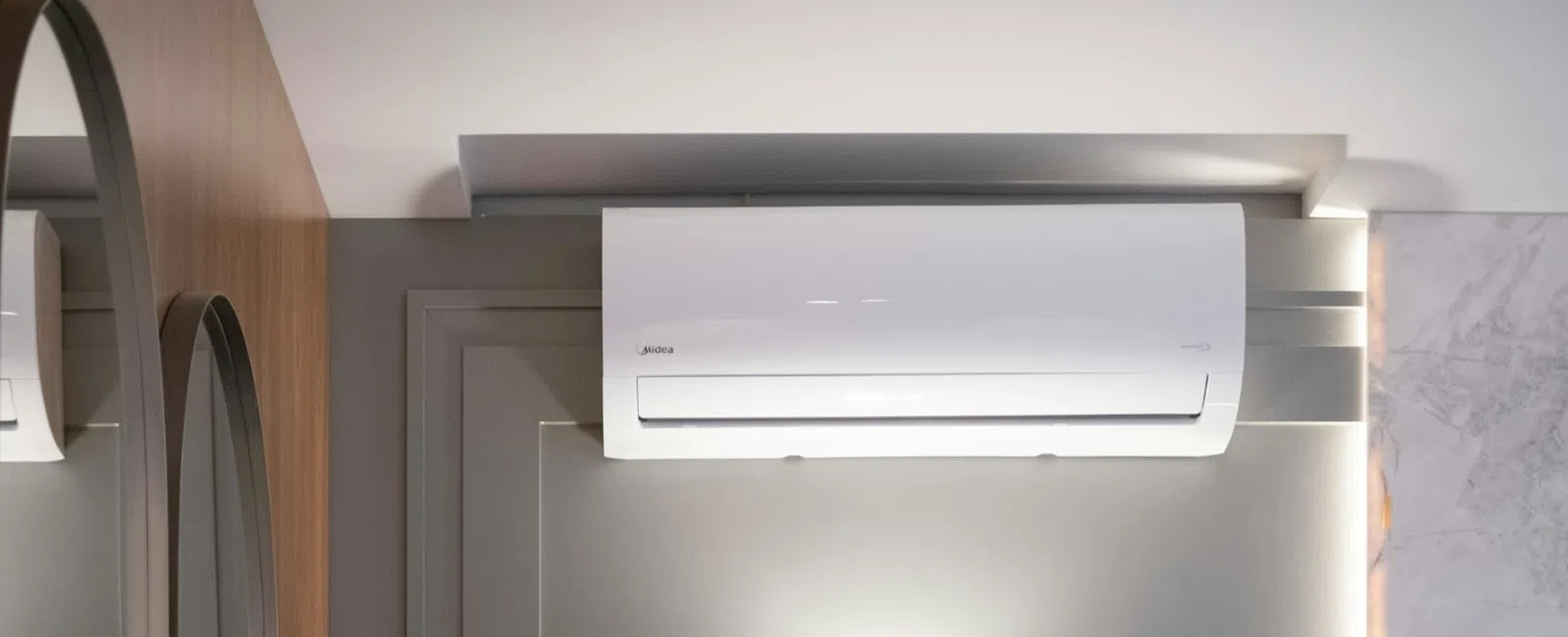

For a single room that has always run hot, a ductless mini split is often the simpler fix. For a whole floor, zoning keeps one system and uses the ducts already in place.

What HVAC Zoning System Installation Involves

A proper installation starts with mapping the duct system, since most homes have no duct drawings, and measuring static pressure to see how the system handles restricted airflow. The installer then places dampers in the duct branches for each zone, mounts the zone panel near the air handler, runs low-voltage wiring to each thermostat, and sets the airflow limits for each zone. In most retrofits the dampers go into ducts in the attic or crawlspace, so walls and ceilings stay closed.

The final step is testing each zone alone and in combination to confirm airflow and pressure stay within range. After that, a zoned system needs the same yearly service as any other, with the dampers and zone panel added to the annual tune-up checklist.
